Temporary Pacing Leads
The SPIKE LC bipolar temporary pacing catheters are designed for reliable pacing and recording. The non-braided shaft and the internal solid core allows a precise control without excessive stiffness. The range of the pre-shaped curves allow different solutions for positioning in the ventricle and atrium both through inferior and superior vena cava.
These TPLs are sterile, disposable, latex free and they are equipped with AISI stainless steel electrodes. SPIKE LC range is available from APC in 4, 5 and 6 French diameters and are equipped with touch proof 2 mm pins. The Spike LCN have 2mm pins with protective caps.
Key features
- Non-braided, atraumatic shaft for smooth insertion
- Pre-shaped curves for optimal positioning
- Stainless steel electrodes for reliable signal
- 4, 5, 6 French diameters
- Sterile, disposable, latex-free
- Shrouded and non-shrouded options
- Additional tip styles available on request
Various electrode configurations, including balloon catheters, introducers, guide wires and kits are also available on request.
Bipolar Temporary Pacing Leads
| Code | Size | Electrode spacing | Usable length | |
|---|---|---|---|---|
| Spike LC Pacing Lead with shrouded pins | 52204S | 4F | 10mm | 90cm |
| 52205S | 5F | 10mm | 125cm | |
| 52206S | 6F | 10mm | 125cm | |
| Spike LC Pacing Lead with non-shrouded pins, with protective caps | 52204N | 4F | 10mm | 90cm |
| 52205N | 5F | 10mm | 125cm | |
| 52206N | 6F | 10mm | 125cm | |
| Spike LC Pacing Lead, balloon tipped with non-shrouded with protective caps | 12165 | 5F | 10mm | 110cm |
Contact APC for more information on the full range of Temporary Pacing Leads.

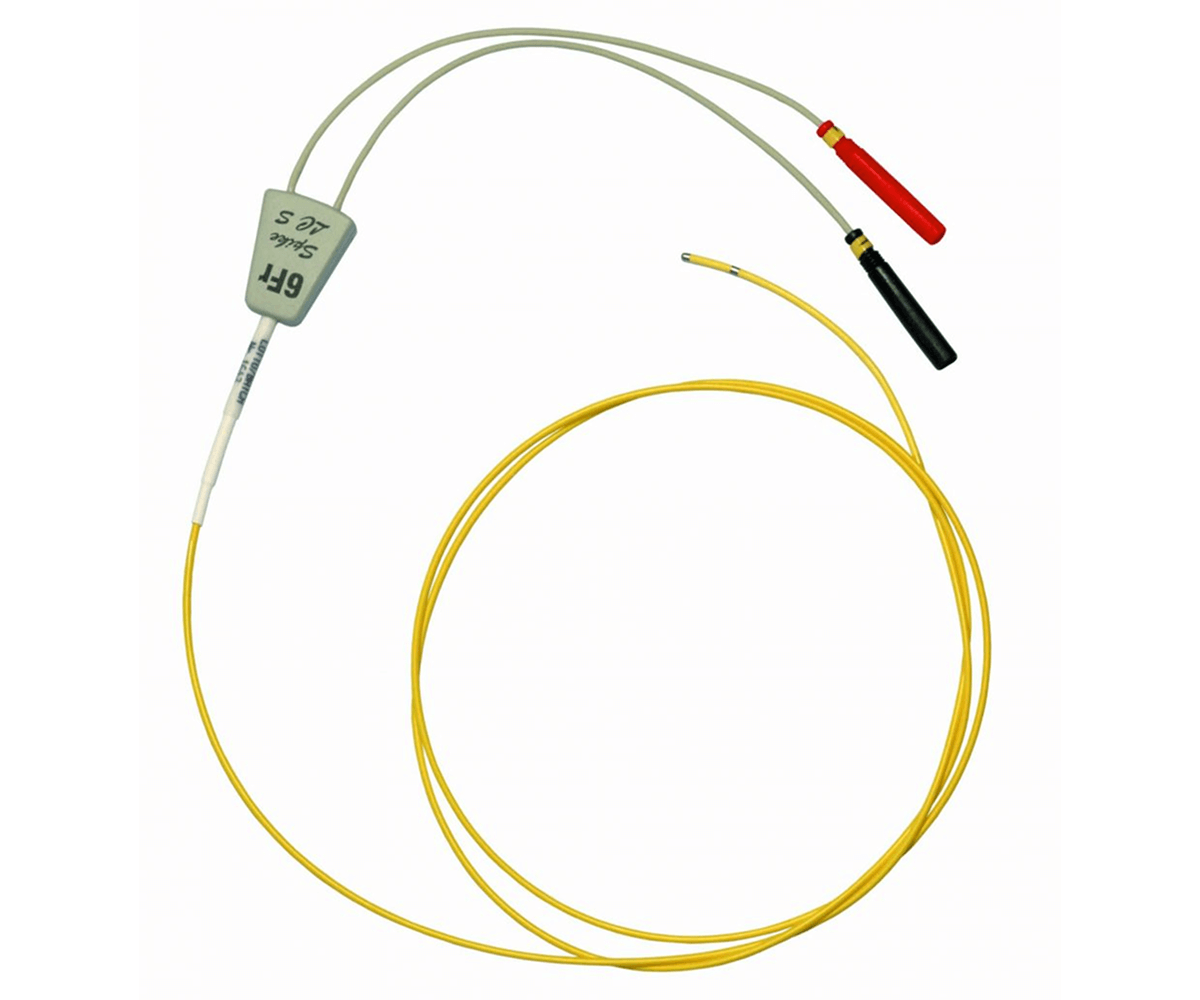

SPIKE LC bipolar temporary pacing leads

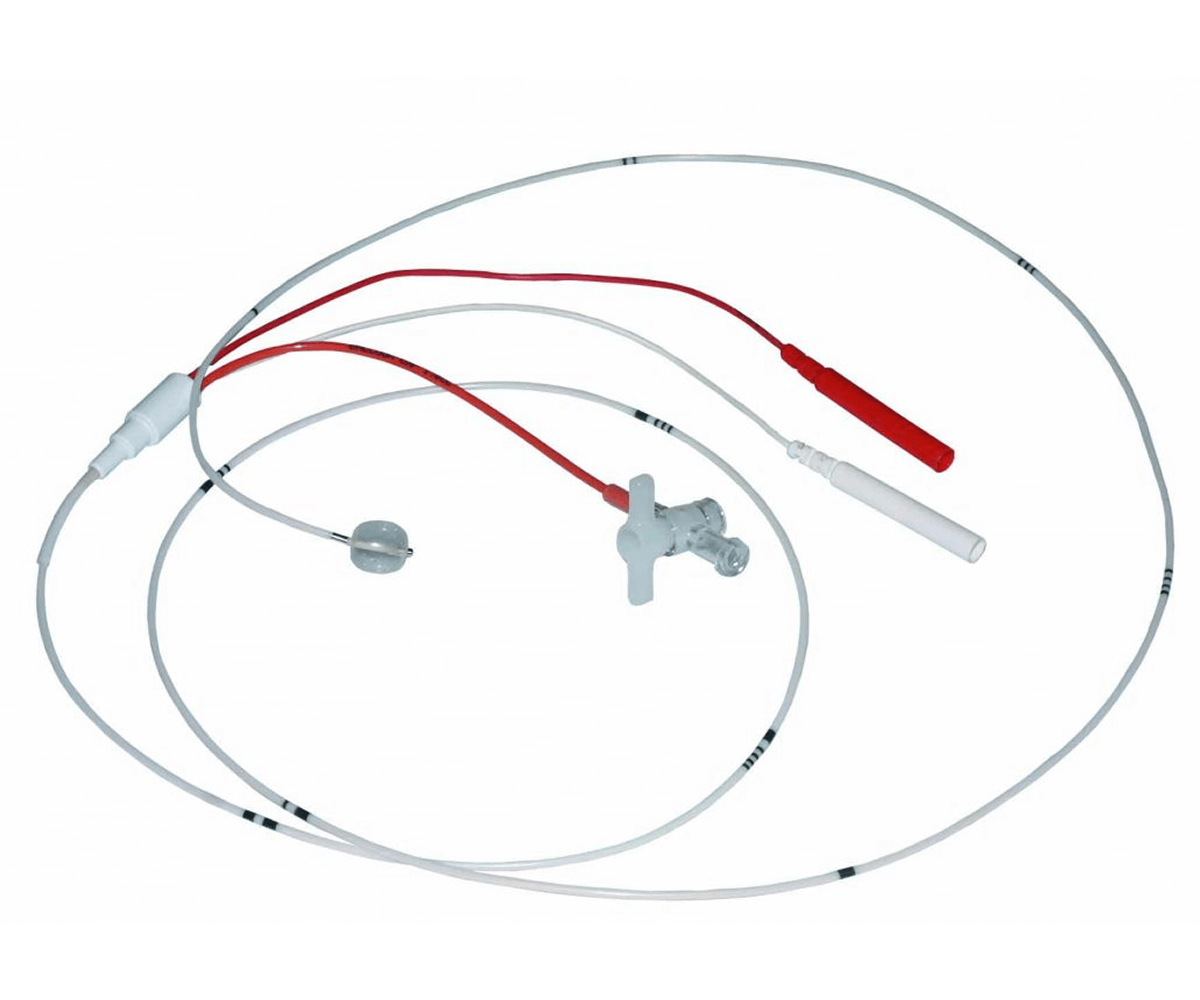

SPIKE FLOW balloon-tipped pacing catheter
